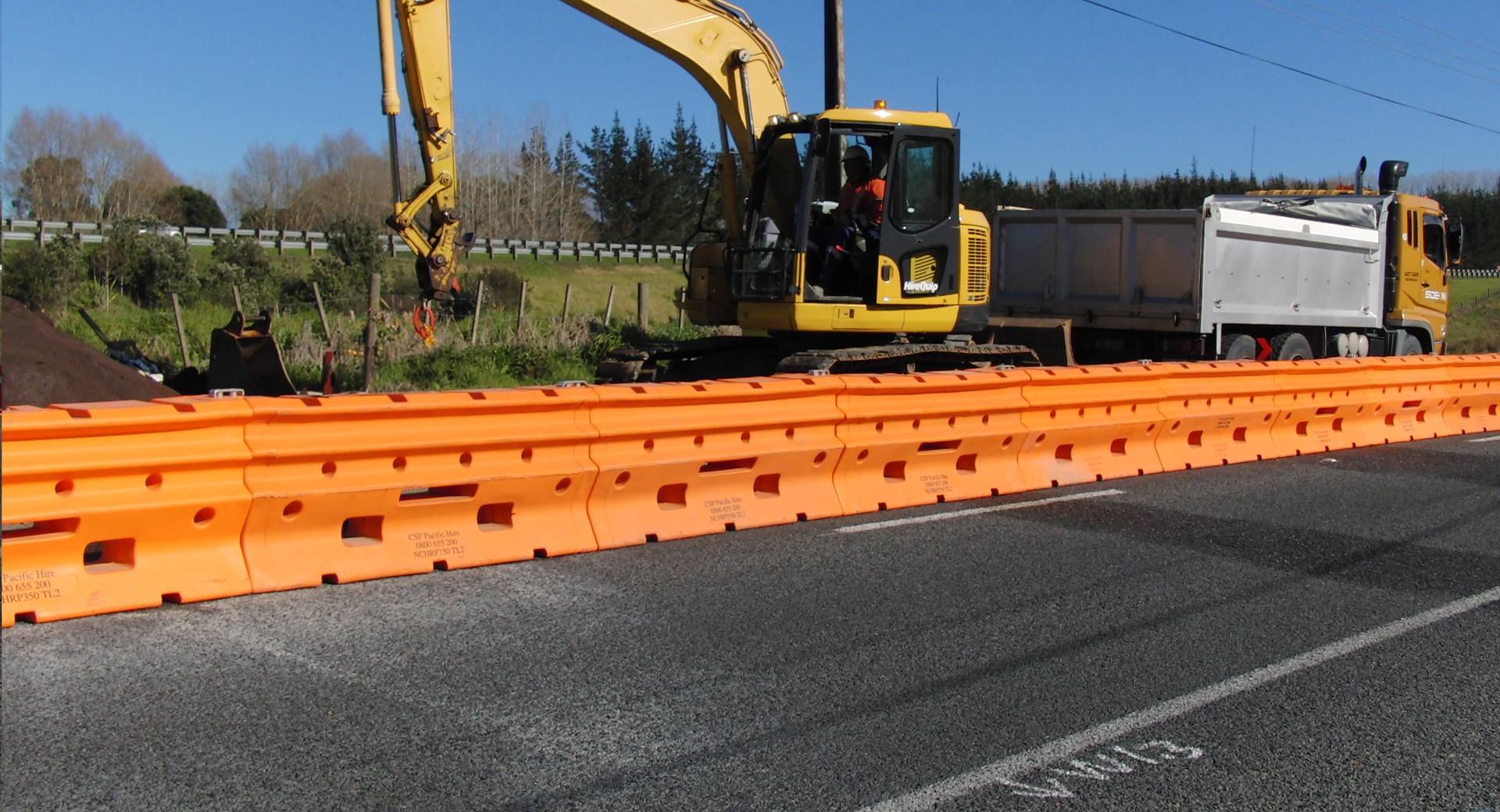

The ArmorZone™ system, compliant with NCHRP 350 TL-2, is designed for quick installation and effective vehicle containment in temporary work zones. Its modular, water-filled units provide reliable protection at impact speeds up to 70 km/h. The ArmorZone™ system, compliant with NCHRP 350 TL-2, is designed for quick installation and effective vehicle containment in temporary work zones. Its modular, water-filled units provide reliable protection at impact speeds up to 70 km/h.

NCHRP 350 TL2
70 km/h
2000mm
Unit Length
520L
Water Capacity
Product Information
Product Information

Product Information Product Information

  • Description Description
    The The Ingal ArmorZone is a temporary longitudinal barrier designed to meet NCHRP 350 TL2 criteria, offering exceptional durability and low deflection. Its HDPE construction makes it ideal for the road safety hire market, with features that emphasize ease of deployment, transportation, and environmental sustainability.
    Description Description
    Features
    NCHRP 350 TL2 Compliance: Tested, approved, and certified to NCHRP 350 TL2 containment level standards, ensuring reliable performance in temporary road safety applications.
    Exceptional Vehicle Control: Provides excellent vehicle control with low deflection, making it highly effective in its market category.
    Efficient Deployment: Easy to install and transport, with a deployment rate of 120 meters per hour.
    Container-Friendly Dimensions: Designed for efficient shipping, with 83 units fitting in a 40’ container.
    Recyclable and Durable: Made from stabilized HDPE, the ArmorZone® is 100% recyclable and durable enough to withstand nuisance impacts without needing repair.
    Additional Features: Includes accessories such as a water level indicator and Water-Opening-Screen to prevent rubbish disposal in barriers.
    Description Description
    Acceptance
    Approved by the Austroads Safety Barrier Assessment Panel for use in temporary traffic management zones, meeting stringent NCHRP 350 TL2 safety standards.
    Description Description
    Performance Metrics
    NCHRP 350 TL2: Certified to meet NCHRP 350 TL2 containment level standards, ensuring it meets rigorous safety requirements.
  • Technical Specifications Technical Specifications
    System Specifications
    Material:
    Length per Unit:
    Height:
    Base Width:
    Weight:
    Deflection:
    Deployment Rate:
    Stabilized HDPE
    2.0 meters
    1.0 meter
    280mm
    18kg per unit
    Low deflection performance within its category
    120 meters per hour
    Technical Specifications Technical Specifications
    Approved Variants
    NCHRP 350 TL-2: Suitable for standard applications with end treatment available.
    Technical Specifications Technical Specifications
    Approved Connections
    End Treatment: Available NCHRP 350 TL-2 end treatment for added safety.
