Guardrail Rigid Transition
Guardrail Rigid Transition

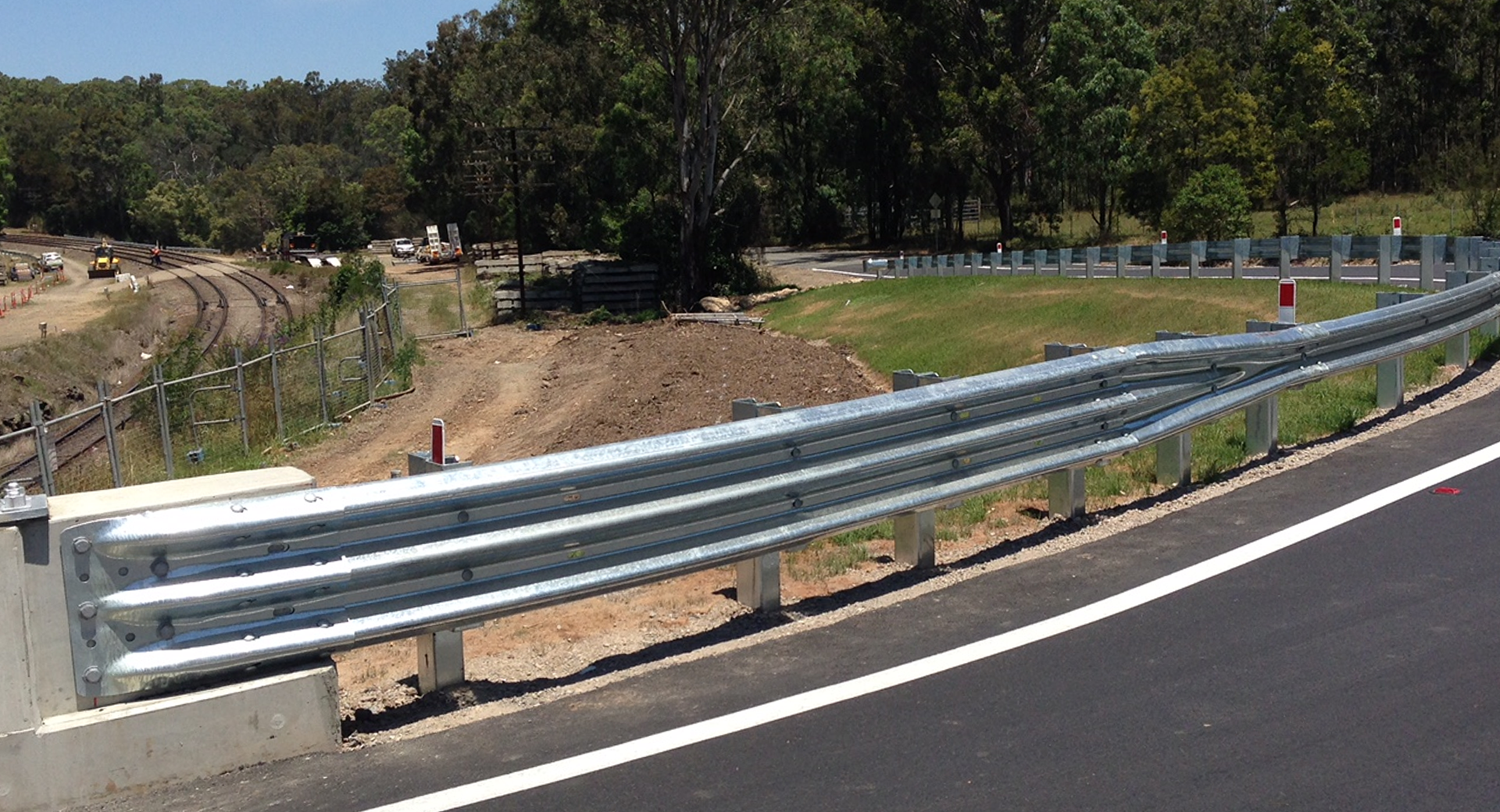

Guardrail Rigid Transitions provide secure, compliant connections between flexible W-Beam or Thrie-Beam guardrails and rigid concrete barriers. With Austroads transitioning to MASH-compliant systems, these legacy transitions may no longer be approved for new installations. For MASH TL3-compliant alternatives, consult your local Ingal Civil representative about the Ingal RBT system.
Product Information
Product Information
Product Information Product Information
- Description DescriptionDescriptionThe Guardrail Rigid Transitions ensure secure and compliant connections between semi-rigid W-Beam/Thriebeam barriers and more rigid concrete barriers. These transitions are essential for maintaining safety, especially at the critical points where flexible guardrails meet rigid concrete barriers.Features FeaturesFeatures• Crash tested and approved to NCHRP 350 TL3• Designed in accordance with AS/NZS 3845.1:2015 or AS/NZS 3845.2:2017 Road Safety Barrier Systems & Devices• Compatible with W-Beam and Thrie-Beam systems• Note that, in line with the Austroads transition to MASH-compliant systems, these transitions may no longer be approved for new installations in some jurisdictions. For MASH TL3-compliant transitions, refer to the Ingal RBT system.
- System Specifications System SpecificationsSystem Specifications• Material:• Barrier Types:• Standard Lengths:High-strength steel, HDG to AS/NZS 4680W-Beam and Thrie-BeamStandard lengths as per technical drawingsApproved Variants Approved VariantsApproved Variants• R0720-07 Thrie-Beam Transition to Type F (NSW)• R0720-07 Thrie-Beam and W-Beam Transition to Type F (NSW)• S4050 Sheet 0037 (SA)• 0430-0765 Traffic Barriers and Balustrading Rail Barrier Transition (WA)Approved Connections Approved ConnectionsApproved Connections• Concrete barrier connections per state drawings• Compatible with W-Beam and Thrie-Beam guardrails
| Title | Type | Size |
Got Questions?
Frequently asked questions
- What is the Guardrail Rigid Transition used for?View
It provides a secure, compliant connection between semi-rigid guardrail systems (such as W-Beam or Thrie-Beam) and rigid concrete barriers/structures (for example bridge parapets or concrete traffic barriers).
- Can the rails in the transition section be curved or used on bends?View
No, the manual clearly states that curving of the thrie-beam rails within this transition system is not permitted.
- What happens if my project requires MASH compliance?View
