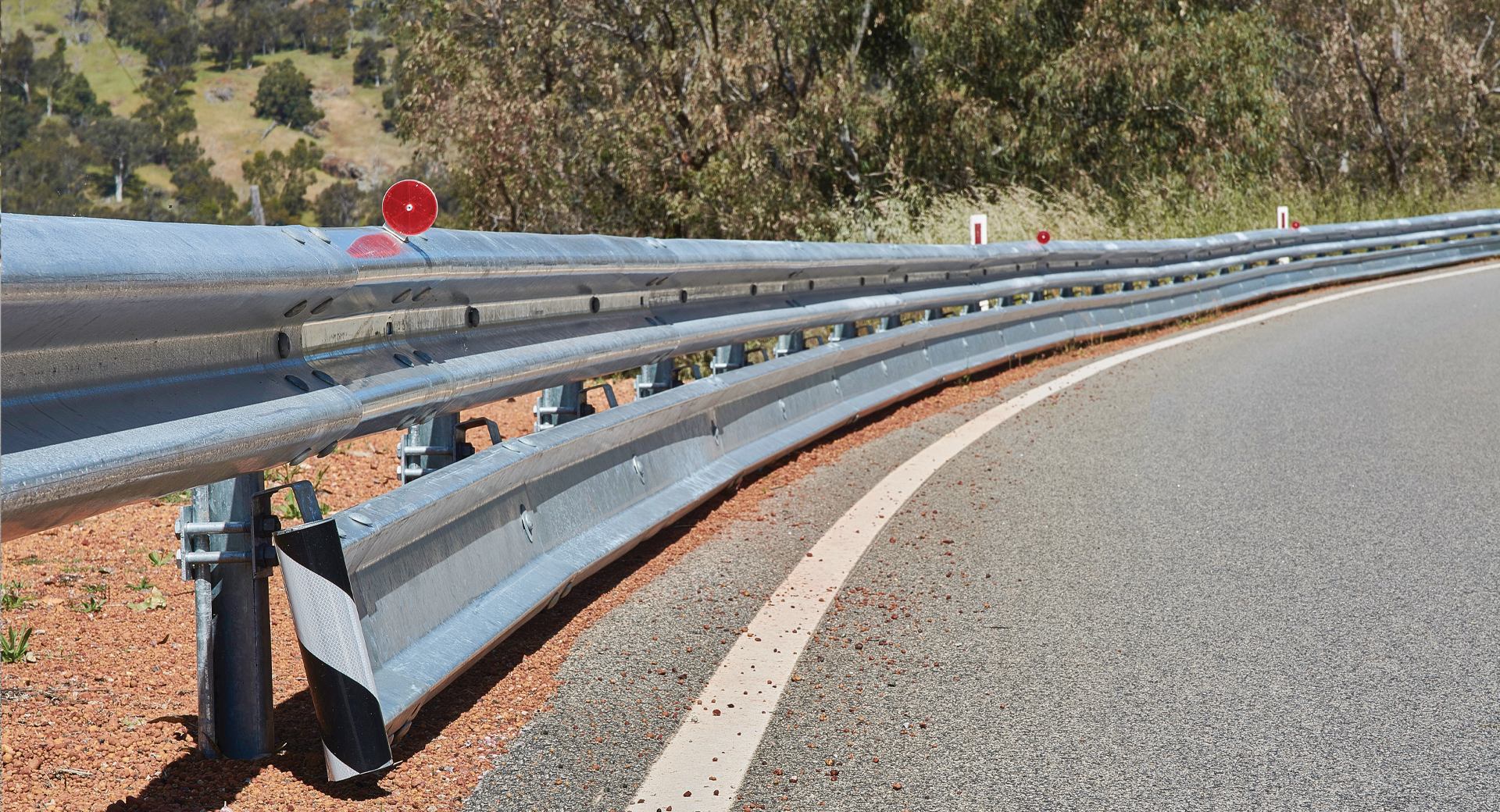

The Ingal Motorcyclist Protection Rail (MPR) provides the highest possible level of protection to motorcyclists by providing underride protection with a spring-mounted rail system. Ingal MPR is designed to reduce the impact severity for motorcyclists when impacting an intermediate guardrail barrier.
Product Information
Product Information
Product Information Product Information
- Description DescriptionDescriptionIngal Motorcyclist Protection Rail (MPR) provides the highest possible level of protection to motorcyclists by providing underride protection with a spring-mounted rail system. Ingal MPR is designed to reduce the impact severity for motorcyclists when impacting an intermediate guardrail barrier. Ingal MPR may be installed on all Ezy-Guard systems in addition to all Public Domain Intermediate W-Beam Guardrail systems.Features FeaturesFeatures• Crash tested and approved to EN1317:8 Class C60, Severity Level 1 and MASH TL3• Accepted by the Austroads Safety Barrier Assessment Panel (ASBAP)• Designed in accordance with AS/NZS 3845.1:2015 or AS/NZS 3845.2:2017 Road Safety Barrier Systems & Devices• Spring-mounted underride rail• Symmetrical mounting bracket
- System Specifications System SpecificationsSystem Specifications• MPR Rail Length:• MPR Rail Mass:• MPR System Mass:• Rail Height Above Ground:• Post Spacing:4000mm12.3kg4.65kg per meter60mm2m or 2.5mApproved Variants Approved VariantsApproved End Treatments Approved End TreatmentsEnd Treatments• MPR Terminal Piece
| Title | Type | Size | |
| Ingal MPR Data Sheet v.0116 | 3968 KB | Download | |
| Ingal MPR Product Manual v.0225 | 3627 KB | Download |
Got Questions?
Frequently asked questions
- How does the MPR work differently to a standard guardrail?View
Instead of the guardrail being the only component, the MPR adds an under-riding rail mounted on spring brackets that absorb some of the impact energy, and the rail is positioned to keep the motorcyclist away from rigid posts and roadside hazards.
- What barriers can Ingal MPR be fitted to?View
It can be fitted to public domain G4 W Beam, Type B, Ezy-Guard 4, Ezy-Guard Smart, Ezy-Guard HC and Ezy-Guard LDS configurations using specific brackets.
- Will adding the MPR affect the performance of the underlying vehicle barrier system?View
- Can the MPR be curved?View
- Can I install MPR on terminal posts?View
- Does it block drainage or shoulder cleaning?View
- Is Ingal MPR suitable for median barriers?View
