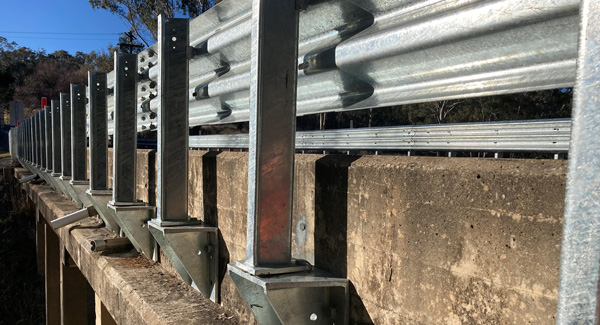

The Ezy-Guard Bridge Barrier system, based on the Ezy-Guard High Containment MASH TL4 system, offers AS5100 Compliant edge protection with deck or side mounting, minimal lane width impact, and options for MASH TL3 and MASH TL2.
Product Information
Product Information
Product Information Product Information
- Description DescriptionDescriptionThe Ezy-Guard Bridge Barrier system is based on the Ezy-Guard HC MASH TL4 system combining AS5100 Compliant edge protection using deck or side mounted posts with minimal lane intrusion. By utilising components from the proven Ezy-Guard HC system, the Ezy-Guard Bridge Barrier is a versatile and robust barrier suitable for use in a wide range of locations where an In Ground Post is unable to be installed, ranging from small culverts through to bridges and structures, offering superior edge protection while maintaining compliance with MASH and AS 5100.2 standards.Features FeaturesFeatures• Complaint and approved under AS5100.2 Low Performance Level• Crash tested to MASH TL3 and MASH TL2• Designed in accordance with AS/NZS 3845.1:2015 or AS/NZS 3845.2:2017 Road Safety Barrier Systems & Devices• Energy-absorbing Z-Posts yield above the base plate• Deck or Side mounting options• 1 m post centres (MASH TL3) or 2 m post centres (MASH TL2)• Standard HC posts for quick repair• Minimal load transfer to structures
- System Specifications System SpecificationsSystem Specifications• Thrie-Beam Length:• Z-Post Mass:• Corrosive Protection:• Rail Height Above Ground:• Z-Post Height Above Ground:• Post Spacing:• System Width:4,000mm13.5kgHot Dip Galvanized (HDG) to AS 4680980mm970mm1m or 2m, depending on required containment level245mmApproved Variants Approved VariantsApproved Variants• Deck mounted to retrofit new or existing structures• Side mounted to maximizes lane widthEnd Treatments End TreatmentsEnd TreatmentsTransitions TransitionsAttachments AttachmentsAttachments• Post Caps for additional safety in pedestrian and cyclist areas
| Title | Type | Size | |
| Malaysia Product Catalogue v.0824 | 9827 KB | Download |
Got Questions?
Frequently asked questions
- Can the system be retrofitted to existing structures?View
Yes. It can be bolted to existing decks or fascia beams. For retrofit work, anchor suitability must be confirmed by the project engineer.
- Can the Ezy-Guard Bridge Barrier be deck mounted or side mounted?View
Yes. The system can be installed as a deck mount or a side mount using chemically anchored M20 studs. Both options provide AS5100 compliant edge protection.
- What containment levels does the system provide?View
- How is the system anchored to the bridge?View
- What posts are used in the on-structure section?View
- How does it transition to roadside barrier?View
