BG800 Gate
BG800 Gate

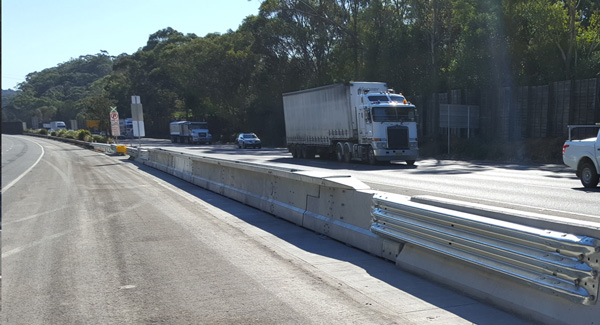

The BG800 Gate is a relocatable crash gate system designed to provide emergency access in a run of longitudinal barrier. It can be used with the BG800 Steel Barrier, in-situ concrete median barriers, or precast concrete barriers. Fully tested and compliant in all states, it provides high containment and easy operation after design impacts.
Product Information
Product Information
Product Information Product Information
- Description DescriptionDescriptionThe BG800 Gate is a heavy-duty crash gate system, ideal for providing emergency access in controlled environments. Designed to work seamlessly with longitudinal barriers such as the BG800 Steel Barrier and concrete barriers, the system offers high durability and ease of operation. The gate is available in lengths ranging from 12 to 30 metres and is made from galvanised steel components, ensuring long-term performance and minimal maintenance. Wheel sets stored within the gate allow for flexible movement options, making it suitable for various emergency access scenarios.Features FeaturesFeatures• Crash tested and approved to NCHRP 350 TL3• Accepted by the Austroads Safety Barrier Assessment Panel (ASBAP)• Designed in accordance with AS/NZS 3845.1 Road Safety Barrier Systems & Devices• Heavy-duty galvanised steel components provide a long service life and reduced maintenance• Gate can be opened even after a design impact, ensuring quick emergency access• Wheel sets enable both longitudinal and lateral movement, providing flexible opening and storage options• Available in lengths from 6 to 36 metres• Designed for long-term use with minimal upkeep
- System Specifications System SpecificationsSystem Specifications• Module Length:• Minimum Opening:• Maximum Opening:• Height:• Width at Base:• Width at Top:• Weight (Per Metre):• Maximum Deflection:• Maximum cross-slope:3 & 6.0m (Per Unit)4.7m28.7m915mm540mm474mm135kg1.07m (2000kg, 100km/h @ 25 deg)3%Approved Connections Approved ConnectionsApproved ConnectionsSteel Barrier• BG800 Permanent• BG800 Temporary• BG800 MDS PermanentPermanent Concrete Barrier• Single Slope Concrete Barrier• Vertical Slope Concrete Barrier• F Shape Concrete BarrierIn the event the specified system assembly, maintenance, or repair would require a deviation from standard assembly parameters, contact an Ingal Civil Products Representative.
Downloads
Downloads
Downloads
| Title | Type | Size | |
| BG800 Gate Data Sheet v.0219 | 162 KB | Download | |
| BG800® Gate Manual v.1018 | 2040 KB | Download | |
| BG800® Gate NCHRP 350 TL3 General Details | 2202 KB | Download |
